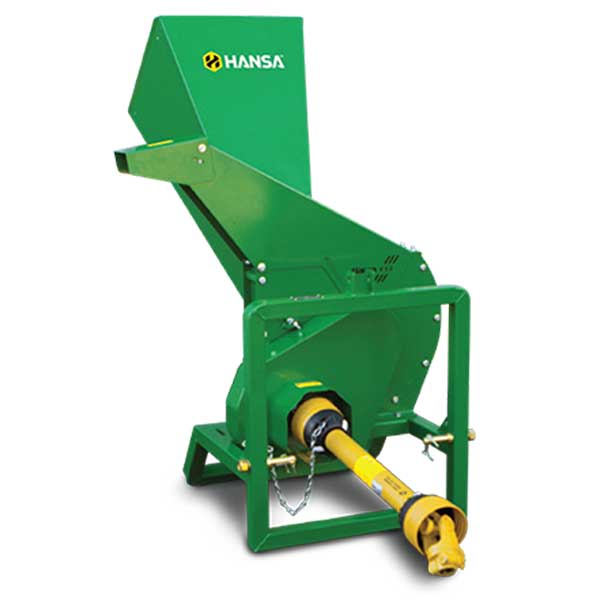

Hansa C13 Brush Chipper PTO Driven
The Hansa C13 has a large inlet chute for feeding in bigger bundles of brushy and twiggy materials, vines and larger branches, therefore no precutting is necessary. The machine has a very efficient self-feeding action. This 'self-feeding' action is due to the design of the rotor and the blade set-up, resulting in a user friendly machine easy on the operator. The inertia generated by the large rotor disk creates enough momentum to keep cutting as well as giving the machine enough draught to discharge the mulch up to 8m away (or close to the operating area by adjusting the deflector on the outlet chute). Having a discharge height of 1.2m makes the C13 ideal for discharging onto a trailer, ute deck or small truck, eliminating the need for any double handling of mulch.
The Hansa C13 operates with two cutting knives, the most efficient way to process branch material. The machine is therefore not suitable for processing soil, sand, grit, stones etc, or any material which will be abrasive and damage the knives. It will chip / shred any branches (green or dry), general garden prunings, hedge material, vines and flower stalks. It is best to avoid flax and cabbage tree leaves.
The design of the Hansa C13 allows full access to the inside of the machine by pivoting open the outlet chute. This makes changing blades for sharpening simple and requires little effort. Adjustable blades eliminate the need to adjust the anvil after sharpening, giving the ability to adjust each blade individually to the anvil for optimal clearance. The blades will last anywhere up to 30 hours use before requiring sharpening, depending on the type of material being mulched.
The C13 is also available as a stand alone unit, road towable unit or yard towable unit.
Ideal for lifestyle block owners, small to medium sized horticultural businesses, orchards, nurseries, farms, school grounds, parks, etc.
Features
- One in feed chute with large opening at convenient operating height
- Tractor mounted PTO driven - operates at PTO speed of 540RPM
- Suitable for any tractor from 15 - 40HP
- Driveshaft is fitted with shear pin
- Self-feeding action, capacity of 80 – 90mm
- Solid housing construction of 5mm steel plate
- Twin belt drive with belt tensioner
- High discharge into trailer, wheelbarrow or stockpile
- Quality hyperloc powder-coated finish
- 12 month warranty
- New Zealand made for New Zealand conditions
- 24 month warranty
Specifications
| Weight (kg) |
Height (mm) |
Width (mm) |
Length (mm) |
Approx Capacity* |
| 177 |
1500 |
900 |
1100 |
80-90mm branches |
|
| *depending on the type and hardness of the wood |
When you compare different makes of machines, be careful, as some manufacturers rate their capacity by the size of the opening, which is misleading. Through a 75mm opening you can practically feed only a 50mm branch. The Hansa C13 has an inlet opening size at the blades of 150 x 180mm.
For more information or advice, please contact us
