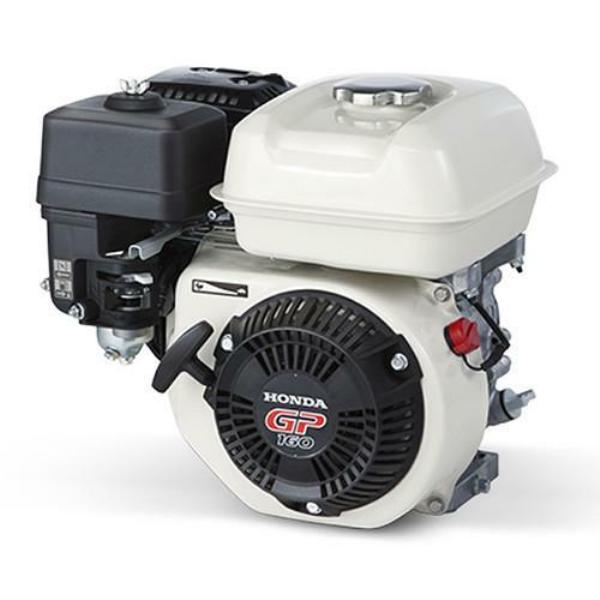

Honda GP160HQX3 5.0hp Horizontal Engine

Honda GP160HQX3 5.0hp Horizontal Engine

NZ$529.00

Bookmark and Share

Honda GP160 Horizontal Engine

Genuine HONDA GP160 horizontal shaft premium domestic petrol engine. OHV technology for greater fuel economy and lower emissions.

Ideal for domestic and semi-professional use on pumps, concrete mixers, rotary hoes and many other general purpose uses.

SPECIFICATIONS

MODEL GP160
TYPE 4-stroke, overhead valve, single-cylinder, horizontal shaft
BORE & STROKE 68 x 45 mm
DISPLACEMENT 163 cm3
COMPRESSION RATIO 8.5:1
NET POWER 3.6kW (4.8HP) at 3,600 rpm
CONTINUOUS RATED POWER 2.9kW (3.9HP) at 3,600 rpm
MAXIMUM NET TORQUE 10.3 Nm at 2,500 rpm
IGNITION SYSTEM Transistorised magneto ignition
STARTING SYSTEM Recoil
COOLING SYSTEM Forced-Air
PTO SHAFT ROTATION Counter-clockwise (from P.T.O. side)
FUEL CONSUMPTION AT RATED POWER 1.4 L/h at 3,600 rpm
RECOMMENDED FUEL Unleaded
LUBRICATION SYSTEM Splash
RECOMMENDED OIL 10W/30 API SG
OIL CAPACITY 0.6l
FUEL TANK CAPACITY 3.1l
DIMENSIONS 314 x 363 x 335mm
DRY WEIGHT 15.1kg
